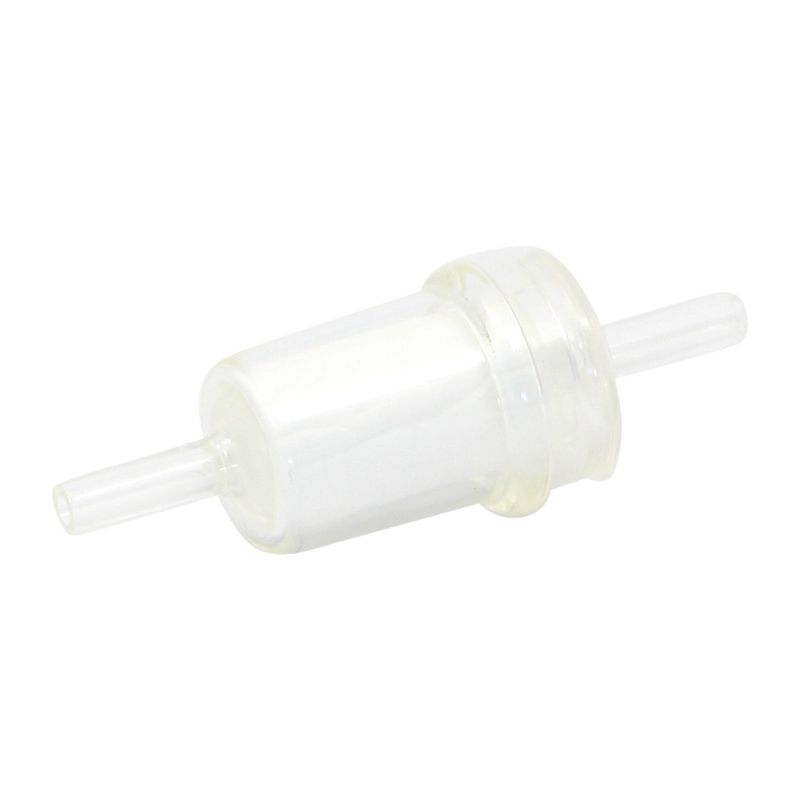

Series SMI - In-line

SMI Inline Microfilters for Industrial Processes

Vacuum moulded Borosilicate glass microfibre filter cartridges Standard housing Nylon (clear), optional: Polypropylene Surface filtration for removal Single moulded construction for use in gas and liquid applications Manufactured in 5 efficiency grades 0.3 to 25 micron filtration efficiency On enquiry: specific requirement Applications: gas and liquid analysis, emissions monitoring and analysis, sample analysis, gas and chemical filtration, instrumentation filtration, laboratory point of use protection and critical instrumentation protection

Filter housing

Nylon (clear)

Polypropylene

Maximum pressure

9 barg (130 psig)

atmospheric

Pressure loss (clean and dry)

100 mbar (1,5 psi)

Pressure loss replacement indicator Δp

400 mbar (6 psi)

Temperature range

-40°C - 60°C

0°C - 65°C

Internal volume

11cm³

Grade

Efficiency, air and gas at 0,3 micron

99,9998%

99,99%

99,5%

95%

Air flow rate in Nm³/h

0,9

1,3

2,6

4,3

5,0

Air flow rate in SCFM

0,5

0,75

1,5

2,5

2,9

Efficiency, liquid 98% at

0,3 µm

0,9 µm

2 µm

8 µm

25 µm

Water flow rate l/h at 100 mbar pressure drop
