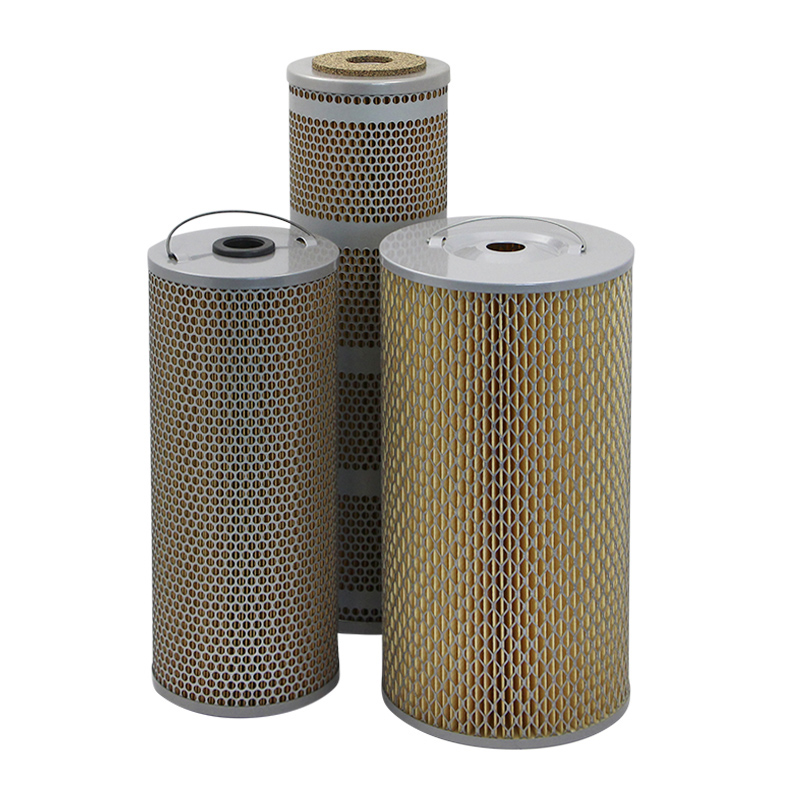

EDM Filter with perforated metal outer lining
- SF EDM filter cartridges to clean the dielectric fluid of work-piece and electrode abrasion
- Filter medium: cellulose
- Style A: metal end plates with gaskets, without montage clamp
- Style B: metal end plates with gaskets and one montage clamp

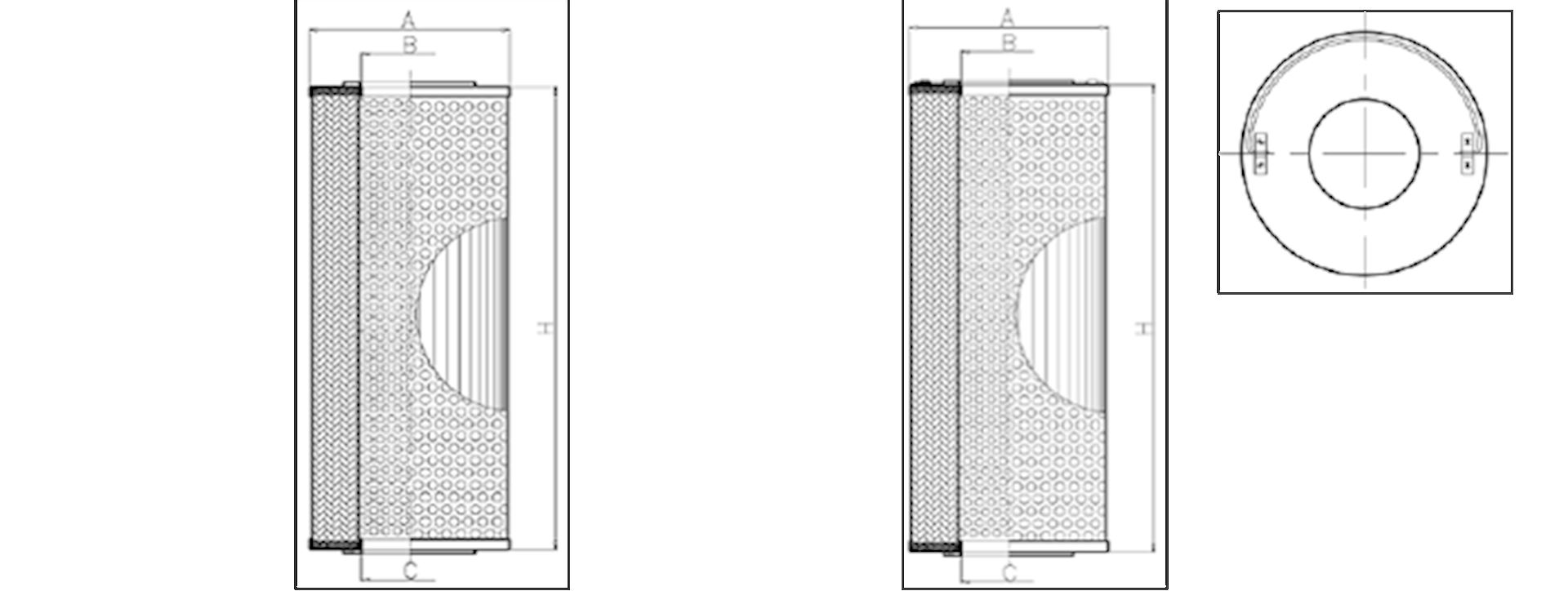

Style A without clamp and Style B with clamp
SF-part number
Style
Fineness(µm)
Surface(cm²)
Height H
Dimensions (mm)Ø A
Ø B + C
SE 2-3003-15PH
B
15
26.700
358
150
32
SE 2-3003-35PH
B
35
26.700
358
150
32
SE 2-3005-6
B
10
25.900
362
196
30
SE 2-3006-6
A
4
93.600
502
302
29
SE 2-3006-6SK
A
5
98.200
508
300
30
SE 2-3008-6
B
5
28.640
340
260
36
SE 2-3015-35PH
A
35
22.400
482
137
32
SE 2-3015-6
A
5
22.400
482
137
38
SE 2-3016-6
A
4
96.000
441
344
46
SE 2-3017-6
A
7
50.200
303
344
45
SE 2-3018-24
B
25
11.880
250
140
32
SE 2-3024-4
B
2
38.800
362
150
32
SE 2-3024-7
B
7
22.550
370
150
32
SE 2-3026-15
A
10
113.360
300
340
76
