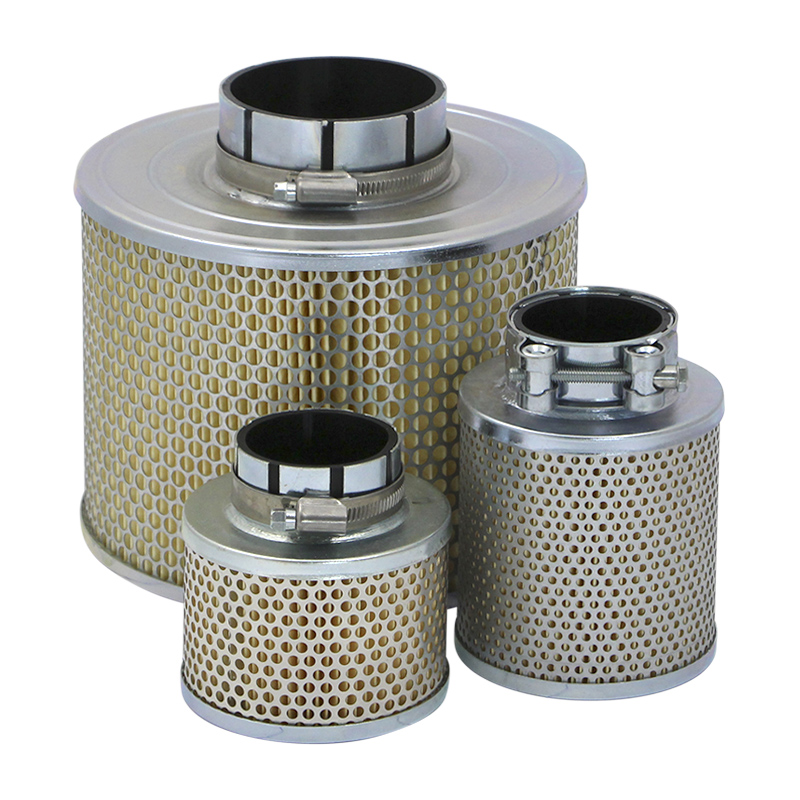

Series SL - Clip on Air Cleaners with metal end caps

  • SF clip on air cleaners with metal end caps are suitable for the filtration of intake air in low-dust areas
  • Applications: stationary engines, generators, compressors and marine engines with little dust loading and 2 and 3 cylinder engines with high pulsation
  • Installation: horizontal and vertical
  • Installation: clip on air cleaner must be mounted with a tension strap
Series SL - Clip on Air Cleaners with metal end caps

SF-part-no.

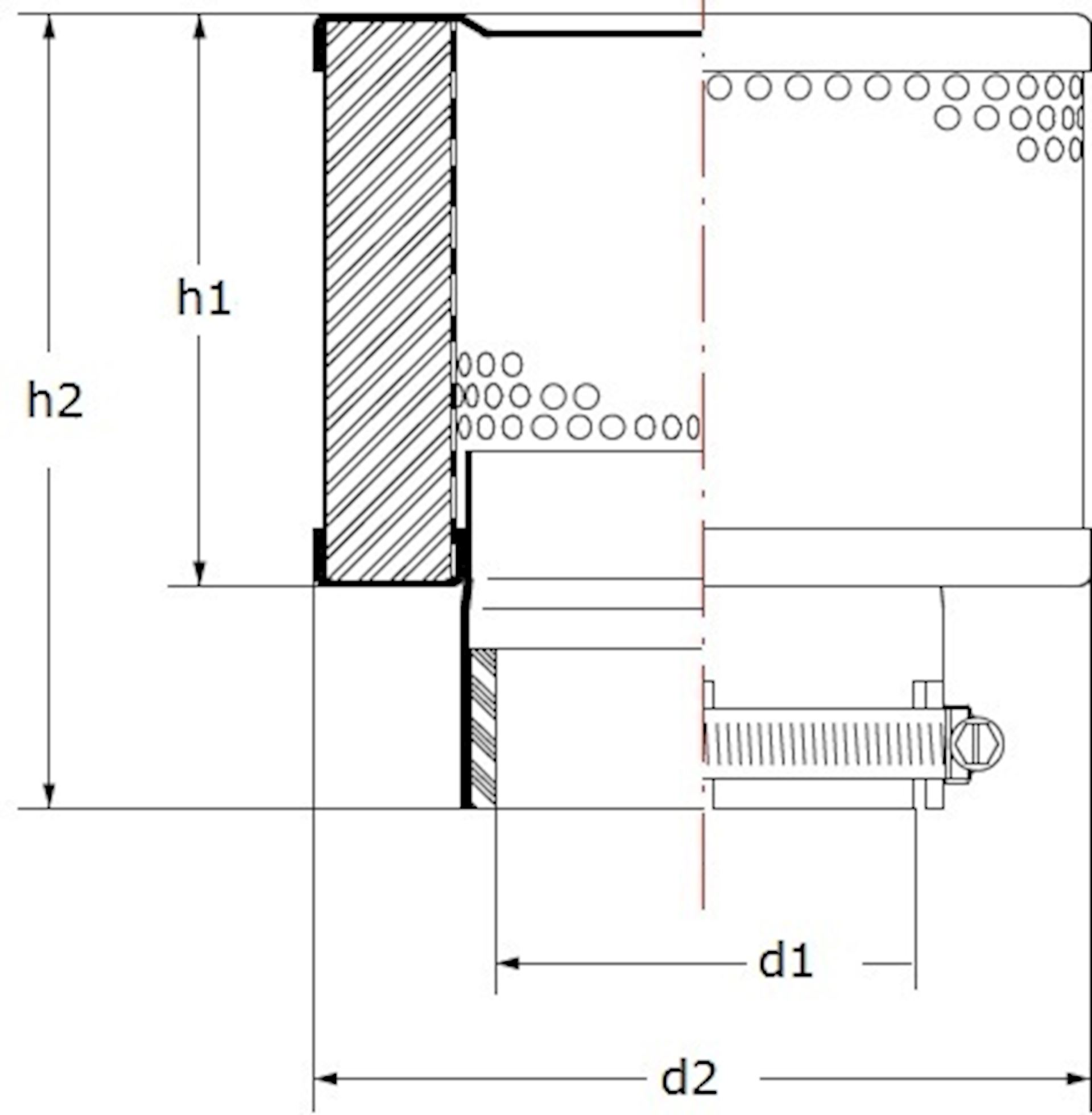

Dimensions in mm
i Ø Adapter d1
Ø d2
Height h2
Height h1
Volume flow (m³/min.)
SL 81712
41
98
133
105

SL 81048
50
145
104
83

SL 81316
52
98
100
72

SL 81211
52
98
128
105

SL 81715
52
98
133
105

SL 81752
52
140
75
50

SL 81180/1
60
152
152
126

SL 81436
60
200
180
150

SL 81749
61
152
130
105

SL 81748
71
152
150
125

SL 81751
81
200
104
70

SL 81212
81
200
185
150

SL 81750
81
257
108
70

SL 81719
102
200
190
150

SL 81645
102
257
198
160
